The Atomic
The Atomic
The Atomic is a warm sounding condenser microphone making it a versatile studio microphone, and a brilliant choice for vocal recording. This is a low-cost microphone that can compete against microphones in a much higher price bracket. The Atomic microphone combines a single-membrane VD21 capsule and a discrete Class-A preamplifier with transformerless output, and benefits from Violet Design’s unique design and assembly process.
The large-sized head creates a free floating environment for the capsule which is beneficial in creating a natural and uncompressed signal. The VD21 membrane is extremely sensitive and picks up impulses very quickly for a transparent and dynamic performance recording.
A matched stereo pair can be special ordered.
The Atomic comes with a microphone holder included in a carton box.
Images
Specifications
|
Transducer type |
True electrostatic |
|
Diaphragm's active diameter |
21 mm |
|

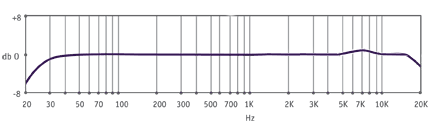

Frequency range |
20 Hz to 20 kHz |
|
Polar pattern |
cardioid |
|
Output impedance |
50 ohms |
|
Sensitivity at 1000 Hz into 1000 ohms load |
22 mV/Pa |
|
S/N Ratio CCIR 468-3 weighted |
77 dB |
|
S/N Ratio DIN/IEC 651 A-weighted |
88 dB-A |
|
Equivalent noise level DIN/IEC A-weighted |
6 dB-A |
|
Maximum SPL for 0.5% THD at 1000 ohm load |
134 dB |
|
Dynamic range of the internal preamplifier |
128 dB |
|
Phantom powering voltage on pins #2 & #3 of XLR |
+48 V (+/-4 V) |
|
Output connector |
3-pin XLR male |
|
Dimensions |
160 x 42 mm |
|
Weight |
320 g |
